Products

Applied Pump Engineering has access to a wide range of pumps for the agricultural, chemical, industrial, waste water, manufacturing, hospitality, domestic, medical, sewerage, mining, construction and other sectors.

Our sales engineers will tailor a solution from the range of manufacturers and types of pumps to suit your specific requirement or application for rotary, centrifugal, diaphragm or vacuum pumps.

Range of Pumps & Products Available:

We have a wide range of pumps which includes but not limited to Positive Displacement, Air Operated Diaphragm, Gear, Submersible, Drum, Lobe, Vane, Piston, Domestic Pressure Systems, Side Channel Blower, Horizontal Multi-stage, In-line Vertical Multi-stage, Magnetic Drive, Cantilever Lever, Heavy Duty Centrifugal, Submersible, Peristaltic, Hydraulic, Marine, Vacuum, Diaphragm and Liquid Ring Vacuum pumps.

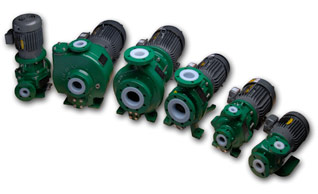

MAGNETIC DRIVE CENTRIFUGAL PUMPS

Applications

  • Chemical Processing
    • Transfer
    • Unloading
    • Bulk storage
  • Hydrocarbon Processing/Refining
    • Sour water
    • Neutralisation
    • Boiler house
  • General Industry
    • Steel finishing, pickling, etching
    • Electroplating
    • High purity process
    • Filtration
  • Municipal
    • Wastewater/Wastechemical treatment
    • Scrubber systems
  • Mining
    • Leaching
  • BioFuels
    • Distillation
    • Transesterification
    • Neutralization
  • Pulp and Paper
    • Bleaching
    • Waste Treatment
  • Pharmacuetical

Special Features

  • No mechanical seals
  • Zero emissions
  • Highly chemical resistant
  • Compact design
  • Non-metallic parts
  • Easy maintenance and high durability
  • Wide variety of construction available

Capacity

up to 15,000 L/min

Pressure

up to 200m

Temp

-190°C to 450°C

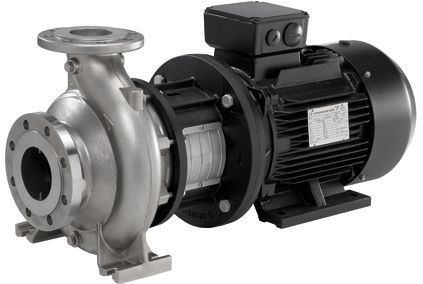

CENTRIFUGAL PUMPS

Applications

  • Hot and cold fluid transfer
  • Cooling tower systems
  • Air-conditioning systems
  • Irrigation systems
  • Pressure boosting
  • Heating water
  • Fire service

Special Features

  • Back pull out design
  • Replaceable wear ring
  • ISO, DIN & ANSI standards available
  • Modular design
  • Wide variety of seal and material configurations

Capacity

up to 100,000 L/min

Pressure

up to 150m

Temp

-20°C to 300°C

SLURRY & SOLIDS PROCESS PUMPS

Applications

  • Acids and chemicals
  • Suspended solids
  • Abrasive products
  • Slurries and latexes
  • Robber compounds
  • Pulp slurries
  • Asphalt
  • Pastes and putties

Special Features

  • Run dry without damage
  • Handle 1 to 1,000,000 cP
  • Ductile iron, 316SS, alloy 20, Ni-Resist, Hastalloy B or C options
  • No metal to metal contact
  • Reliable shaft sealing
  • Built in by-pass available

Capacity

up to 1,950 L/min

Pressure

up to 320m

Temp

up to 250°C

MULTISTAGE CENTRIFUGAL PUMPS

Applications

  • Boiler feed
  • Pressure boosting
  • Washing systems
  • Turf irrigation systems
  • Reverse osmosis
  • Hot and cold water circulation
  • Cooling tower systems

Special Features

  • Horizontal or vertical orientation
  • Various nozzle orientation
  • Wide variety of seal and material configurations

Capacity

up to 42,000 L/min

Pressure

up to 1600m

Temp

-25°C to 180°C

SUBMERSIBLE PUMPS

Applications

  • Storm water drainage
  • Septic tank drainage
  • Trench emptying
  • Mine dewatering
  • Slurry and sludge dewatering
  • Fountain displays

Special Features

  • Fully submersible
  • Manual and automatic operation
  • Double mechanical seals lubricated in oil bath
  • Various materials of construction
  • Large solids capability
  • Various impeller options

Capacity

up to 100,000 L/min

Pressure

up to 170m

Temp

up to 55°C

VERTICAL COLUMN/CANTILEVER PUMPS

Applications

  • Condensate removal
  • Hot water sump emptying
  • Chemical sump emptying
  • Chemical tank circulation
  • Suds pumping

Special Features

  • Variety of materials
  • Soild handling
  • Column length made to order

Capacity

up to 6,000 L/min

Pressure

up to 150m

Temp

-20°C to 140°C

DIAPHRAGM PUMPS

Applications

  • Adhesives and resins
  • Paints and inks
  • Emulsions
  • Trench dewatering
  • Liquid manure
  • Septic tank cleaning
  • Industrial wastes
  • Oil skimming
  • Abattoirs and poultry processing
  • Chemical transfer

Special Features

  • Air, electric, petrol or hand operated options
  • Wide variety of materials
  • Self priming
  • Run dry capability
  • Portable and lightweight
  • 7.5m suction lift
  • Handle solids up to 60mm
  • Handle abrasive liquids

Capacity

up to 1,000 L/min

Pressure

up to 70m

Temp

up to 150°C

HYGIENIC PUMPS

Applications

  • Cosmetics
  • Dairy products
  • Beverages
  • Pharmaceutical
  • Confectionary
  • Food products

Special Features

  • Flexible impeller, lobe and centrifugal designs available
  • Handle highly viscous products

Capacity

up to 2,600 L/min

Pressure

up to 150m

Temp

up to 300°C

INTERNAL ROTARY GEAR PUMPS

Applications

  • Oils
  • Waxes and resins
  • Molasses
  • Honey
  • Soap and detergents
  • Paints and inks
  • Petrochemicals
  • Most thick clean liquids

Special Features

  • Viscosity from 1 to 75,500 cP
  • Back pull out design
  • Higher pump speeds
  • Manetic drive sealless design available
  • Heating jackets available
  • Wide variaety materials of construction

Capacity

up to 2100 L/min

Pressure

up to 140m

Temp

up to 350°C

PERISTALTIC HOSE PUMPS

Applications

  • Cosmetics
  • Dyes and pigments
  • Adhesives
  • Acids and chemicals
  • Abrasives
  • Pharmaceutical products

Special Features

  • Run dry without damage
  • Self priming
  • Sealess
  • Low maintenance
  • Handle acids and abrasives
  • Wide variety of hose material available

Capacity

up to 550 L/min

Pressure

up to 150m

Temp

up to 100°C

METERING PUMPS

Applications

  • Chemical dosing
  • Water treatment and balancing
  • Batch dosing
  • Petrochemical and chemical processing

Special Features

  • Diaphragm, packed plunger and hydraulicall actuated options
  • ± 1% accuracy
  • Adjustable flow rates
  • Batch control available

Capacity

up to 270 L/min

Pressure

up to 3200 m

Temp

up to 120°C

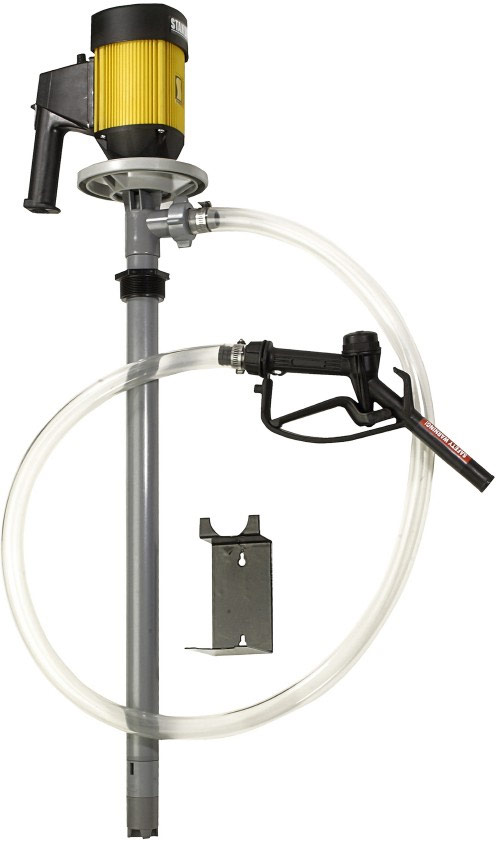

DRUM PUMP

Applications

  • Chemical transfer
  • Paints and inks
  • Petrochemical
  • Food and beverage

Special Features

  • Portable
  • Electric, air, flame-proof and battery operated motors
  • Motor/tube inter-changeability
  • Easy maintenance and high durability
  • Wide variety of construction available

Capacity

up to 225 L/min

Pressure

up to 1300m

Temp

up to 140°C

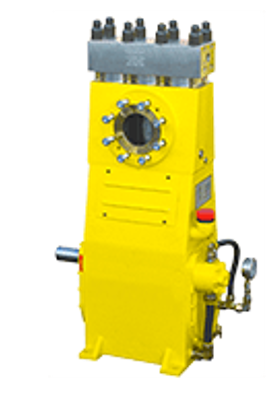

MINING PUMPS

Applications

  • Concrete Demolition
  • Pipe Cleaning
  • Surface Preparation
  • Vessel Cleaning
  • Liquid or Gas Injection

Special Features

  • Long working life under continuous maximum duty.
  • Solid ceramic or Tungsten Carbide plungers.
  • Availability Zero emission designs.
  • Pressurised oil lubrication system with oil cooler/filter
  • Alternating stress-free Stainless steel pump head.

Capacity

up to 2987 L/min

Pressure

Up to 30,000m

Power

Up to 1100kW

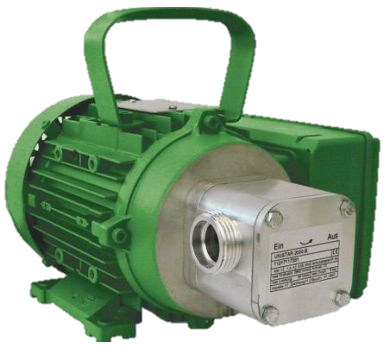

Flexible impeller pumps

Applications

  • Chemical Processing
  • Draining tanks
  • Galvanising tanks
  • Dosing
  • Decanting
  • Filtering

Special Features

  • Dry running capability
  • Self priming
  • Ability to use in different application using variety of impellers and seals.
  • Ability to pump high viscous liquids (up to 20 000 cP)
  • Available in electrically operated, engine operated and pneumatically operated pumps

Capacity

up to 730 L/min

Pressure

Up to 5 bar

Power

Up to 3.5kW

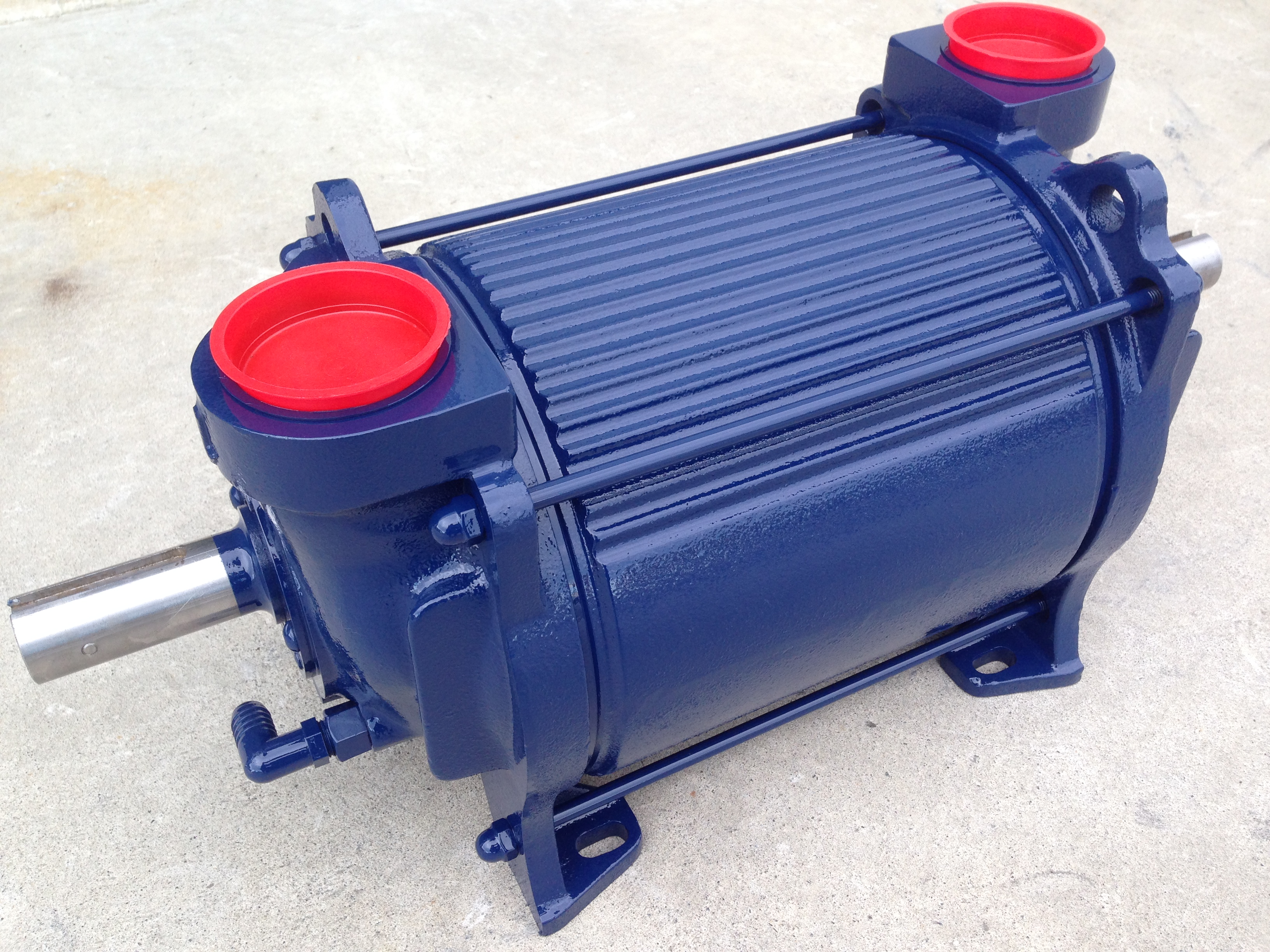

Liquid Ring Vacuum Pumps

Applications

  • Farm Industry
  • Dairy Industry
  • Cleaning Industry

Special Features

  • Able to cope with contamination
  • Long working life
  • Quieter operation
  • Lower maintenance

Capacity

  • VPWR 1700 at 50kpa up to 2000 LPM
  • VPWR 2400 at 50kpa up to 3000 LPM
  • VPWR 3200 at 50kpa up to 4000 LPM
